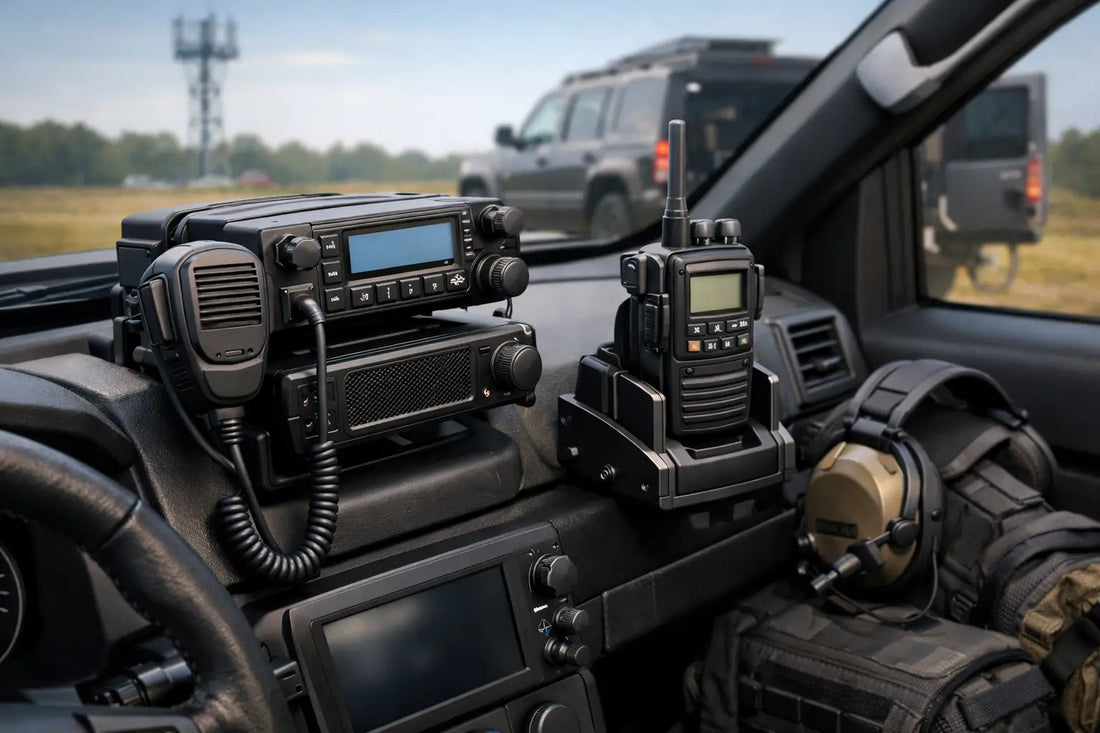

How to Mount Mobile Radios for Reliable Field Comms

How to Mount Mobile Radios for Reliable Field Comms

A mobile radio that slides across the console on the first hard corner is not installed. It is a future failed transmission, a damaged connector, or a distraction when the driver needs to stay focused. Learning how to mount mobile radios means treating the radio, bracket, wiring, microphone, and antenna feed as one working system.

For a race trailer, chase vehicle, work truck, overland rig, or daily driver carrying amateur radio equipment, the goal is the same: controls within reach, cables protected, cooling unrestricted, and nothing loose enough to become a projectile. Start with the operating job, then build the mount around it.

How to Mount Mobile Radios: Start With the Operating Position

Before drilling, sit in the normal operating position and hold the radio where you think it belongs. Check the display angle, button access, microphone reach, and whether a passenger can operate it without leaning across the cabin. A location that looks clean in a parked vehicle may be unusable with harnesses on, gloves fitted, or a helmet limiting peripheral vision.

The best position depends on who operates the radio. In a solo work truck, the center console or lower dash may work well. In a race support vehicle, a passenger-side location can keep the driver from reaching away from the wheel. In a trailer, put the radio near the primary work position, but away from doors, ramps, and areas where gear gets loaded hard.

Avoid mounting in airbag deployment zones, directly over critical switches, or where the radio blocks gauges, cameras, or visibility. Check the vehicle manual before using a dash panel or pillar area. A clean-looking install is never worth interfering with a safety system.

Also leave room around the radio. Mobile radios generate heat, especially during extended transmit periods. A tight cubby can turn a reliable unit into a thermal problem. Leave clearance around cooling vents and avoid stuffing the rear of the chassis against insulation, loose gear, or bundled wiring.

Choose a Mounting Method That Matches the Vehicle

The mount must carry more than the radio's static weight. It has to handle vibration, braking, off-road impacts, trailer movement, and the repeated force of grabbing the microphone. A basic bracket may be enough for a light-duty vehicle used on pavement. A race trailer, track support rig, or off-road vehicle needs a more deliberate mounting strategy.

A factory radio bracket is often the right starting point because it matches the radio chassis and holds it at a usable angle. The real decision is how that bracket attaches to the vehicle. Whenever possible, secure it to a structural surface, a reinforced console, or an existing mounting point designed to carry load.

Thin trim panels are not structural. They can crack, flex, or pull loose after a few rough events. If a panel is your only option, use a backing plate or an engineered adapter that spreads the load over a larger area. The goal is to eliminate flex before it starts fatiguing the panel, fasteners, and radio case.

For removable setups, a quick-release mount can make sense. This is useful when one radio moves between a truck, trailer, and trackside command table. The trade-off is another connection point and another potential rattle. Use a locking design, verify engagement every time, and do not assume a consumer-grade quick-release is ready for motorsports vibration.

Remote-head radios give you another option. The main chassis can live in a protected, ventilated location while the control head mounts near the operator. This is often the cleanest answer in tight cabs, but it adds a control cable that must be routed and strain-relieved correctly. It is a strong solution when dashboard space is limited, not a shortcut around planning.

Build for Vibration, Not Just a Parked Vehicle

Vibration is what separates a temporary install from field-ready equipment. Every unsupported cable works against its connector. Every loose fastener slowly enlarges its mounting hole. Every sharp edge becomes a future failure point.

Use fasteners appropriate for the surface and load. Secure the mounting hardware so it resists loosening under vibration, then inspect it after the first several operating cycles. The first event, long road trip, or trail run is effectively a live test. If the mount shifts even slightly, correct the structure before adding more tension to the hardware.

Support the radio body and the wiring separately. The bracket should hold the radio. Cable restraints should hold the cables. Do not let a power lead, antenna coax, or remote-head cable become a structural member simply because it is tied too tightly or routed without slack.

A small service loop behind the radio is useful, provided it cannot snag or rub. It gives enough movement to remove the unit for inspection without pulling connectors sideways. Keep the loop controlled and away from pedals, seat tracks, moving console lids, and heat sources.

Run Power Like a Critical Circuit

A good radio mount cannot compensate for poor power wiring. Mobile radios are sensitive to voltage drop, poor grounding, and electrical noise. The result can be weak output, intermittent resets, alternator whine, or unexplained communication failures at exactly the wrong time.

Run the radio's power leads as the manufacturer directs, typically toward the battery or a properly rated distribution point. Protect the positive lead with a fuse placed close to the power source. The fuse protects the wire if it is damaged, so putting it at the radio end leaves too much unprotected length.

Keep the power path sized for the radio's expected transmit load and the length of the run. Do not share a weak accessory circuit just because it is convenient. A radio that works while receiving but resets when transmitting is telling you the power path is inadequate.

Grounding deserves the same attention. Follow the radio manufacturer's guidance for the negative lead and chassis bonding. Clean, secure contact points matter. Paint, corrosion, and loose hardware create resistance, and resistance becomes voltage drop and noise. In vehicle installs, confirm that the radio, mounting structure, and vehicle chassis are properly bonded where needed.

Route power wiring away from ignition components, high-current accessories, and antenna coax where practical. Cross other wiring at a right angle when paths must intersect. This will not solve every noise problem, but it prevents poor routing from creating one.

Protect the Antenna and Microphone Connections

The antenna system is part of the install, not an afterthought. A perfectly mounted radio with a compromised coax path will still produce poor communications. Route coax with gradual bends, keep it away from pinch points, and protect it where it passes through metal or sharp panel edges.

Do not coil excess coax into a tight bundle behind the radio. Route only what is necessary and secure it so it cannot chafe. Check the antenna mount, connector tightness, and cable condition before putting the radio into regular service. Transmitting into a bad antenna system can damage equipment and leave you with unreliable range.

Mount the microphone where it can be grabbed without looking. A clip near the steering wheel, center stack, or primary work position is usually better than dropping it into a cup holder. The microphone cord needs enough reach for normal use but should not hang into pedals, shifters, harness hardware, or trailer controls.

For high-vibration environments, a positive-retention microphone holder is worth the extra thought. A radio is only useful if the operator can key up quickly when the pit, convoy, or recovery team needs an answer.

Test the Installation Under Real Conditions

Bench testing proves that the radio turns on. It does not prove the install is ready. Test receive and transmit with the engine off and running. Watch for voltage drop, noise, display flicker, heat buildup, or a mount that shifts when the microphone is pulled.

Then test it in the conditions it will actually face. Drive the vehicle, open and close the trailer door, move the seats, operate the controls, and confirm that nothing rubs or binds. Ask the operator to use the radio while wearing the same gloves, helmet, or safety equipment used on event day.

A practical final inspection should cover these points:

  • The radio is secure and its vents have clear airflow.
  • The display, buttons, and microphone are reachable without blocking driving or work tasks.
  • Power wiring is fused, supported, and protected from abrasion.
  • Coax and control cables have no sharp bends, pinch points, or unsupported connector load.
  • The antenna system is verified before regular transmitting.
If the installation needs a custom bracket, a remote-head dock, or a purpose-built organizer for a crowded race trailer, design from the actual vehicle dimensions instead of forcing a generic mount to fit. Lexar Prints approaches that work from the same requirement: the equipment must stay put, stay accessible, and keep working when the environment gets rough.

The final test is simple. After a hard drive, a long transmit cycle, or a busy pit stop, the radio should be exactly where you left it, powered cleanly, and ready when someone calls.
