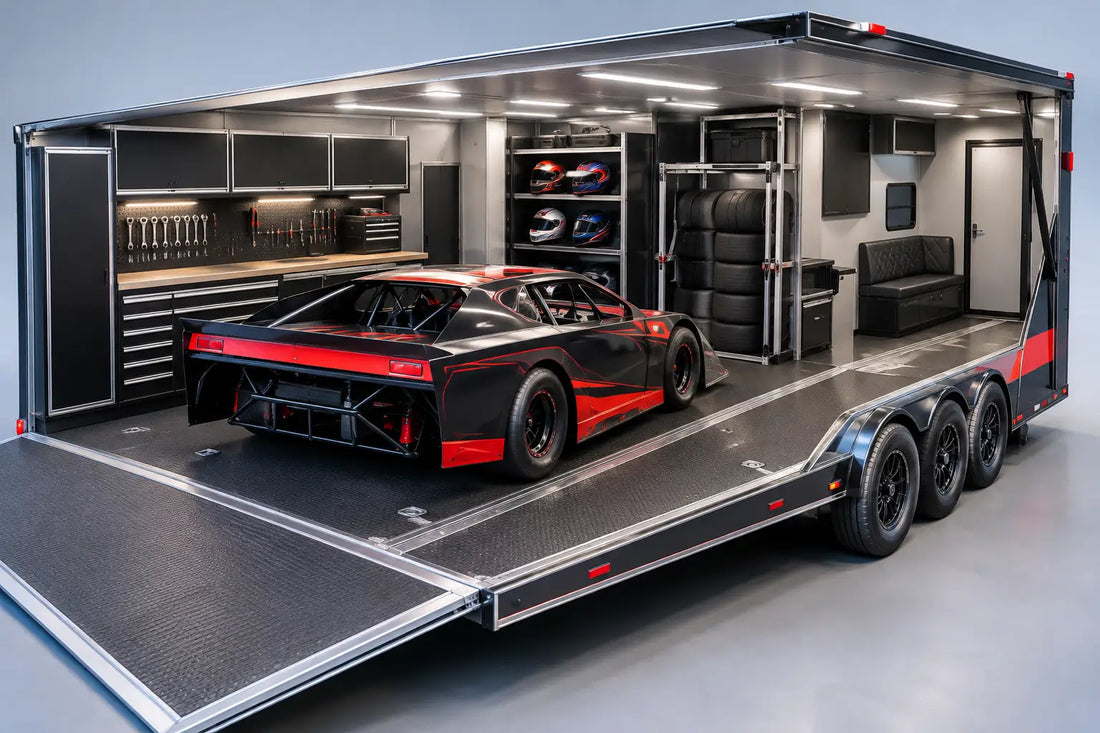

How to Build a Race Trailer Layout Guide

A trailer can look organized at home and still fail you in the paddock. The failure usually shows up at the worst time: a missing torque wrench, a helmet buried under a tire blanket, a loose fuel jug, or a generator cord blocking the door. This race trailer layout guide starts with one goal: every item needs a defined position that stays secure in transit and makes sense when the clock is running.

A good layout is not about fitting the maximum amount of equipment inside. It is about reducing the steps between arriving at the track, setting up the pit, servicing the vehicle, and loading out safely. Build around the work your crew actually performs, not around an empty trailer wall that happens to be available.

Start With the Race-Day Workflow

Before mounting cabinets, bins, or wall brackets, walk through a typical event from gate entry to final load-out. What comes out first? What must be immediately available after a session? What gets used only once, but has serious consequences if it is missing?

Most teams need four working zones: vehicle support, tools and parts, safety and driver gear, and power or pit equipment. The exact footprint depends on whether you are hauling a kart, motorcycle, car, or ATV, but the principle holds. Equipment should live near the moment it is needed.

For example, tie-downs, wheel chocks, and unloading ramps belong at the vehicle bay, not in a cabinet at the front. Common hand tools, torque tools, fluids, and fasteners should sit near the service side of the vehicle. Helmets, radios, gloves, suits, and cooling equipment need a clean, protected area away from fuel, grime, and wet tires.

Write down the sequence. It exposes bad layout decisions before you drill the first hole. If unloading requires moving three cases, two chairs, and a stack of tires, the trailer is carrying gear but not supporting readiness.

Build the Race Trailer Layout Around Weight

Weight placement is a handling and safety issue, not a cosmetic choice. Heavy equipment needs to sit low, be restrained against forward and side movement, and remain close to the trailer's axle area whenever possible. A loaded toolbox, generator, spare wheels, and fluid containers can change towing behavior quickly when they are all pushed to one end.

Do not assume the front wall is automatically the right place for every heavy item. Too much tongue weight can overload the tow vehicle and make the trailer difficult to manage. Too little can contribute to sway. Trailer size, axle position, vehicle weight, and tow setup all matter, so verify your trailer's rated capacities and use a properly adjusted hitch setup.

Keep the center aisle clear enough for the vehicle, a rolling tool cart, and a person carrying a wheel. High shelves are for light, low-risk items: paper towels, gloves, decals, spare apparel, and small empty cases. Heavy bins do not belong overhead, no matter how solid the shelf appears.

Secure for Road Shock, Not Garage Storage

A trailer sees vibration, sudden braking, uneven pavement, and sharp turns. A storage solution that works in a shop can become a projectile after one rough highway section.

Use positive retention for anything with weight or a hard edge. Latches, straps, retaining lips, and purpose-built mounts all have a place. The test is simple: if the trailer hits a pothole, can the item shift, swing, or fall? If the answer is yes, the solution is not finished.

This is especially critical for fire extinguishers, fuel-related equipment, batteries, radios, and tools with sharp edges. These items should be visible and reachable without becoming loose hazards.

Create a Service Wall, Not a Random Tool Pile

The service wall is the trailer's working face. It should support fast repairs without turning the floor into a parts counter. Start with the tools that are used at nearly every event: torque wrench, sockets, tire gauge, hand tools, cleaning supplies, tape, zip ties, and common hardware.

Put frequently used items between knee and shoulder height. That is the fastest, least frustrating reach zone. Give every tool family a specific outline, holder, drawer, or labeled bin. When an item is missing, the empty location should make that obvious before the session starts.

Organize spare parts by failure consequence, not just by category. A spare nut is useful, but a replacement chain, brake component, belt, wheel hardware, or electrical connector may be what keeps the day alive. Keep these parts in shallow, labeled containers where the labels can be read with the trailer door open.

Avoid deep bins for mixed hardware. They are efficient only until someone needs one specific fitting while a driver is waiting in grid. Small divided storage costs less time than digging through a single catch-all box.

Protect the Driver and Comms Zone

Driver gear is performance equipment. A wet helmet, tangled radio harness, dead intercom battery, or misplaced gloves can delay an entire program. Give this gear a dedicated zone that stays clean and dry.

Mount helmets where they cannot roll or contact hard tools. Build enough ventilation around that space to help gear dry between sessions. If your team uses a trackside helmet dryer, plan its mounting point and power route early. It should be easy to access after a session without running cords across the service area.

Comms equipment deserves the same discipline. Radios, headsets, charging cables, push-to-talk switches, and backup batteries need assigned positions. A custom comms mount can keep devices visible, protected, and charged while eliminating the familiar pile of cables on the workbench.

Keep a small driver-ready kit near the exit: gloves, balaclava, ear protection, spare visor hardware, drink mix, and a printed run plan if your team uses one. This prevents the driver from searching through the parts inventory five minutes before staging.

Plan Power, Lighting, and Cable Control Early

Power is easiest to add before the trailer fills up. Identify where shore power enters, where a generator will sit if used, and where you need outlets for chargers, tire equipment, lighting, fans, and drying gear. Protect cables from door edges, moving equipment, moisture, and foot traffic.

Lighting should support actual jobs. General overhead lighting helps with load-in, but targeted light at the tool wall, workbench, and driver gear area makes trackside service faster. Avoid placing critical storage in the darkest front corner of the trailer simply because it is unused space.

Create one location for extension cords, power strips, adapters, and charging leads. Coil and retain each cable rather than stuffing it into a tote. The goal is not a showroom look. The goal is to prevent damaged cords, missing adapters, and ten minutes of untangling when the paddock power turns on.

Leave Room for the Dirty Work

Tires, wet gear, trash, used rags, and muddy tools need a controlled place. If they do not have one, they migrate onto clean gear and the trailer floor. A rear-zone containment area near the doors is usually the right answer because it reduces how far dirt travels through the trailer.

Separate clean and dirty equipment with physical distance when possible. Driver gear and communications should not share a shelf with fluids, chain lube, or used parts. The same goes for food and drink. A small dedicated trash point and rag container keep the end-of-day cleanup from becoming a floor-wide scavenger hunt.

This is also where layout trade-offs matter. A compact enclosed trailer may not have room for a full workstation, tire rack, changing area, and multiple spare sets. Prioritize what protects safety, supports repairs, and keeps the vehicle moving. Nice-to-have equipment can stay modular and come only when the event demands it.

Prototype Before You Commit

The strongest trailer layouts usually go through a V1 to final process. Use tape on the floor to mark cabinet footprints. Place bins and tool cases where you think they belong. Load the vehicle, simulate unloading, open every door, and see what conflicts.

Then run one event with the temporary layout. Notice what gets set on the floor, what gets borrowed from another area, and what people ask for repeatedly. Those are the signals that your system needs revision.

Custom organizers earn their place when off-the-shelf storage wastes space or creates repeatable problems. A mount made for your helmet dryer, a labeled rack sized to your radio equipment, or a bracket that holds a specific tool where the crew expects it can remove friction from every event. Lexar Prints approaches those problems as field-ready engineering, not decoration.

Your final layout should make a tired crew more capable at the end of a long day. If the next tool is visible, the next repair has room to happen, and every piece of gear returns to a secure home, the trailer is doing its job before the engine ever starts.
